Room Squaring — Set the Floor Lines Right

What It Means to Square a Room

To square a room, you mark a straight reference line and check that it meets another line at a right angle. This gives your flooring a reliable starting point, even when walls are not perfectly straight.

Good layout helps boards or planks run evenly and keeps cuts from becoming awkward near the far wall. It also helps you plan the first and last rows, so you can avoid thin slivers along an edge.

Do not assume a room is square because its walls look straight. In a rectangular room, compare the two diagonal measurements between opposite corners. Matching diagonals suggest the corners are square, while a gap shows the room is out of square.

• Measure wall lengths and both diagonals.
• Choose a straight reference wall or a line set in from it.
• Plan the layout before cutting flooring.

Tools to Set Accurate Floor Lines

A tape measure, pencil, chalk line, and framing square cover most room layouts. A level helps you check lines and spot dips or rises, though it does not replace a straightedge for a long floor line.

Use a helper when pulling a chalk line across a wide room. For a solo job, a laser can project a straight line, but check its setup before trusting the mark. Keep a notepad for dimensions and label each corner in your sketch.

• Tape measure: Check wall lengths, diagonals, and planned offsets.
• Framing square: Check a small corner or set a right angle.
• Chalk line: Snap a visible, straight layout line.
• Level and straightedge: Check the floor and guide marks.

How to Square a Room Before Laying Flooring

Start by clearing the floor and noting doorways, fireplaces, alcoves, and fixed cabinets. Remove loose trim where needed, then check the floor for bumps or dips. Follow the flooring maker’s rules for floor prep before you mark your layout.

Measure each wall at the floor, not higher up, since walls can lean. Record the dimensions and both corner-to-corner diagonals. In a room with four straight walls, equal diagonals are a useful check. If they differ, use a planned reference line instead of treating a wall as square.

1. Pick a starting wall. Choose the longest straight wall or the main sight line from the doorway.
2. Mark an offset. Measure out from that wall at two points, then snap a line parallel to it.
3. Set a right angle. From one point on the line, mark three units along it and four units across. Adjust the cross mark until the distance between marks is five units. Use feet, inches, or another consistent unit.
4. Extend the second line. Snap a line through the right-angle mark, then check the corner with a framing square where possible.
5. Test the layout. Measure to the far walls at several points. Shift the lines if the planned first or last row would be too narrow.
6. Dry-lay a few pieces. Check how the flooring meets doorways and edges before making permanent cuts.

The 3-4-5 check is handy, but larger marks improve accuracy across a big room. For example, use six feet, eight feet, and ten feet when space allows. Make small shifts, then recheck the marks before snapping your final lines.

Irregular Rooms and Common Layout Errors

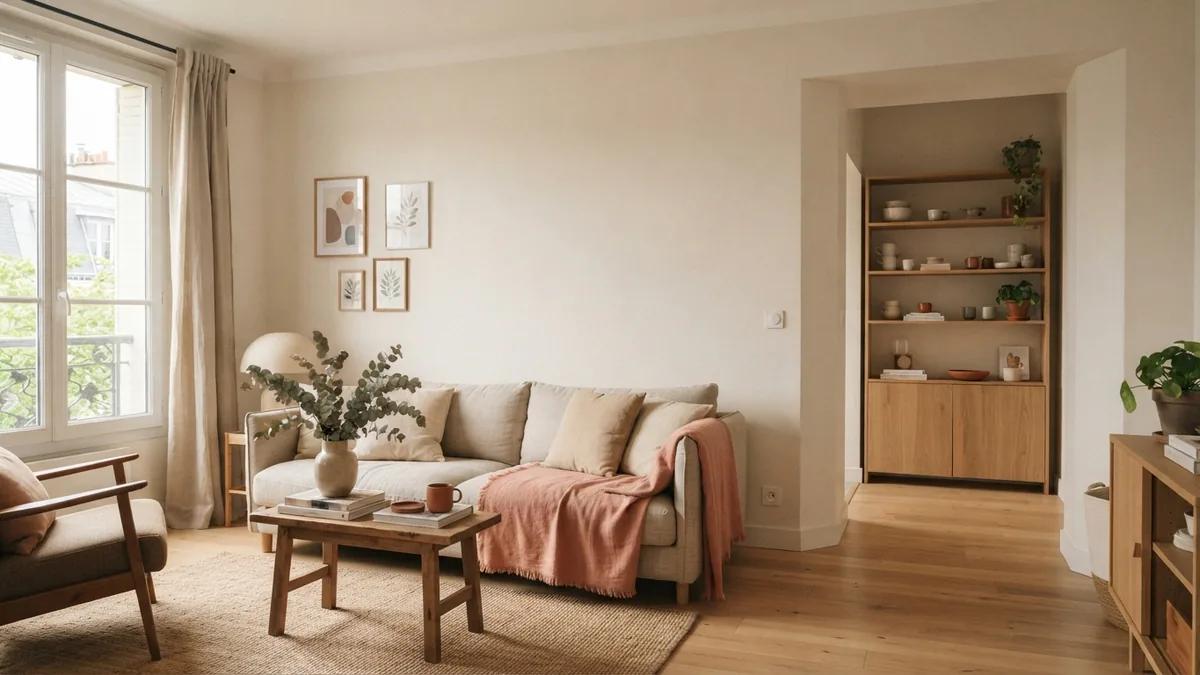

For an L-shaped room, square the main open area first. Treat alcoves and short returns as separate zones, then carry the main reference line through each opening. Check each transition against the planned plank direction.

In a room with angled walls, do not try to make every edge align with one wall. Keep the main flooring rows straight, then scribe the edge pieces to fit the wall. Measure each end of a cut piece, since an angled wall can change its width along the run.

Common errors are measuring from different points, snapping a line before checking the floor, and trusting one corner. Avoid them by writing down each measurement and repeating key checks. Also leave room for the product’s required expansion gap at fixed edges.

• Use the same unit and measuring points throughout.
• Do not judge squareness by eye alone.
• Check doorways and transitions before laying full rows.
• Keep chalk marks light if the flooring or finish can show through.

Adjust the Layout for Hardwood, Vinyl, and Other Floors

For hardwood, plan the board direction around the room’s main sight line and the subfloor. If you are learning how to square a room for hardwood flooring, keep the first row straight with a snapped line, not a bowed wall. Check the required fastener pattern and expansion space in the product instructions.

For vinyl plank flooring, a straight first row matters because the click joints can magnify small errors over several rows. Dry-fit a few rows and check the end joints before you commit. Follow the maker’s rules for underlayment, floor flatness, and gaps at the edges.

Tile layouts may need a centered grid or a line aligned with a focal wall. Carpet has different needs, but a sound room plan still helps with seams and edge cuts. In every case, use the flooring maker’s layout and prep rules as the final word.

Account for waste before cutting. The amount varies by product, room shape, and pattern, so do not rely on one fixed allowance. A room with many corners or angled cuts needs more careful planning than a simple rectangle.

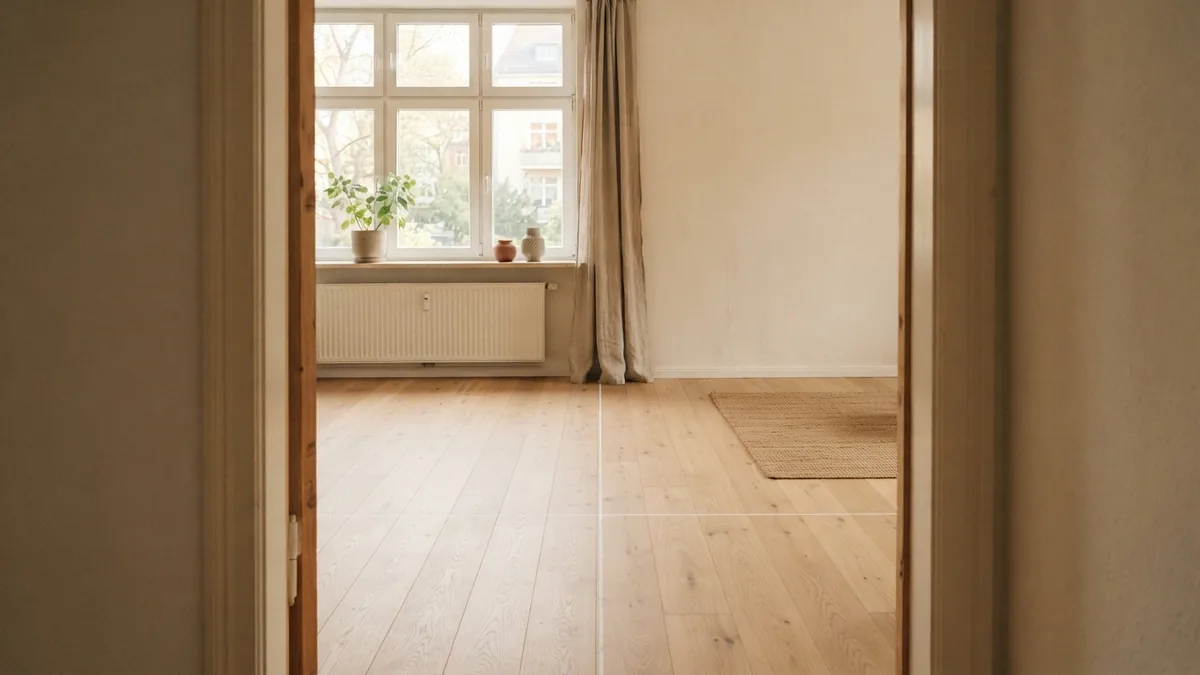

Finish the Layout Before Installation

Once the lines are set, mark the direction of the flooring and note the key dimensions on your sketch. Confirm the first row’s width at both ends, then check the planned last row. Shift the layout now if the far edge would leave a narrow strip.

Check the subfloor for flatness, firmness, and moisture as the product requires. Add underlayment only when the flooring system calls for it. Underlayment can affect height at doors and transitions, so plan those details before installation.

Snap fresh lines if foot traffic or floor prep has rubbed them away. Keep the measuring tape and square close by as you lay the first rows. A final check at each doorway and wall makes the finished floor look planned, not forced.
